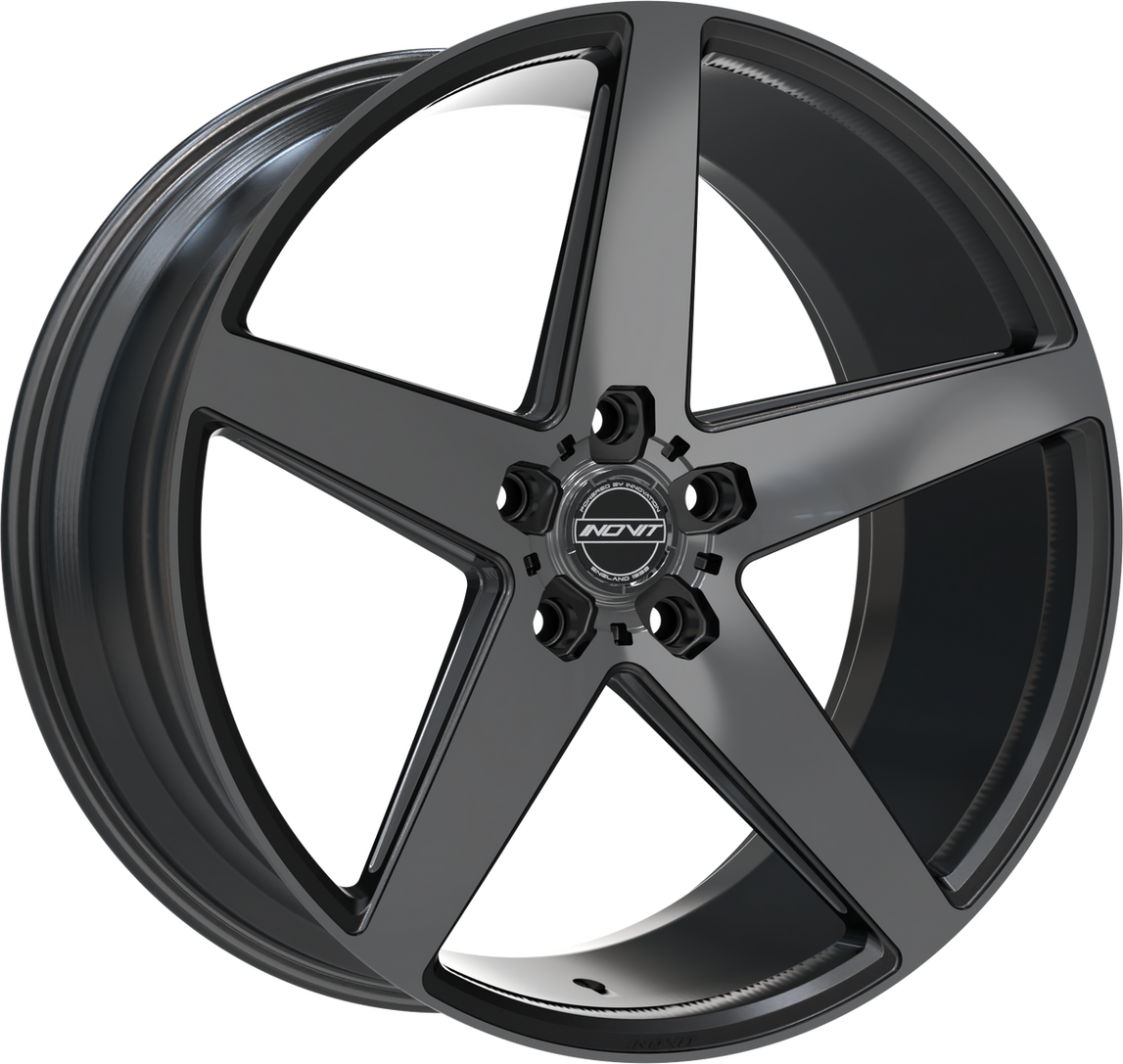

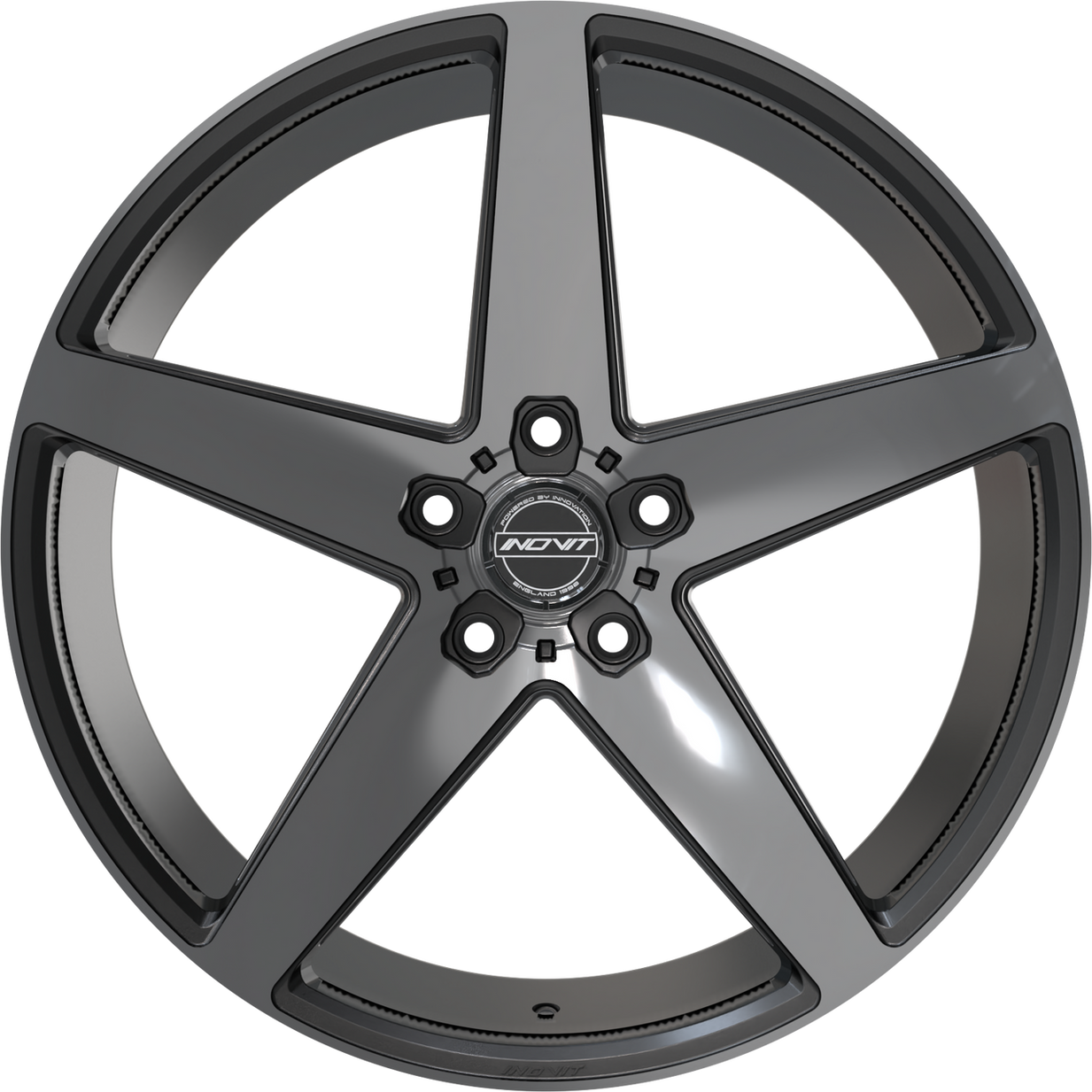

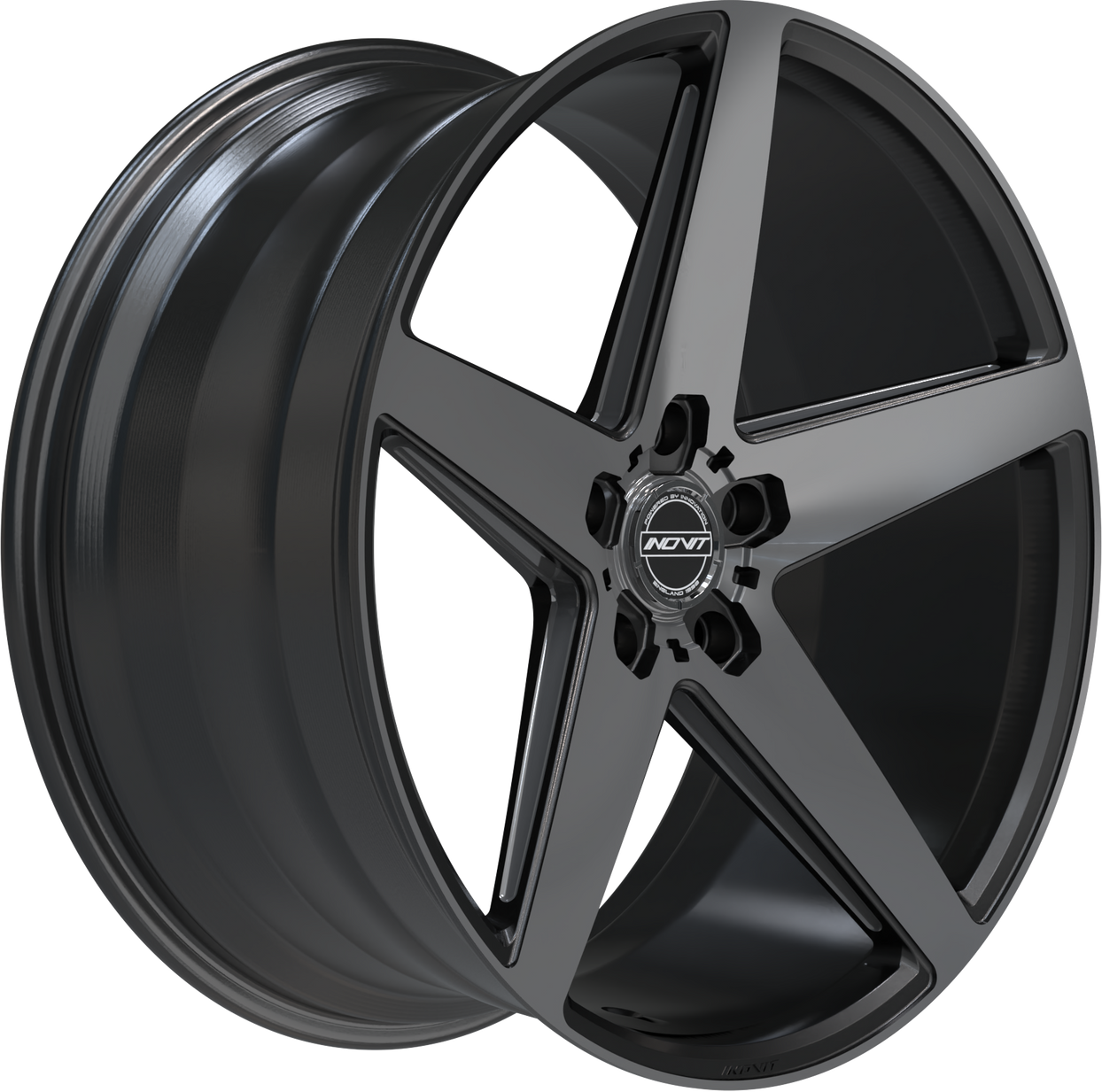

Rotor
Black Machined Face Ball Cut Milled Satin Dark Tint
Silver Machined Face Ball Cut Milled Satin Lacquer
Candy Red Machined Face Ball Cut Milled Gloss Candy Red Tint
People love the simple five spoke design, and people also want intricate details. INOVIT™ Rotor is a clean five spoke design with extreme detail in the center of the wheel, multi-layered spokes, as well as a ball cut on the side of the spoke to add details. In the end, we created a simple, yet intricate five spoke design; the INOVIT™ Rotor is set to become one of the industry’s instant classics.
Specification
Filter with Diameter
Diameter | Width | Holes | PCD | ET | C/B | Cap | Bolt Pattern | Load Rating | Bump |
|---|---|---|---|---|---|---|---|---|---|
20 | 5 | 112-114.3 | 35 | 73.1 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
20 | 5 | 120 | 35 | 72.6 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
20 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
20 | 5 | 112-114.3 | 40 | 73.1 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
20 | 5 | 120 | 40 | 72.6 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
20 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 112-114.3 | 35 | 73.1 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 115 | 15 | 71.5 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 120 | 35 | 72.6 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 112-114.3 | 40 | 73.1 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 115 | 20 | 71.5 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 120 | 40 | 72.6 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ | |
22 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | 880kg/1,940 lbs | EH2+ |
Diameter | Width | Holes | PCD | ET | C/B | Cap | Bolt Pattern | Bump | Load Rating |
|---|---|---|---|---|---|---|---|---|---|
20 | 8.5 | 5 | 112-114.3 | 35 | 73.1 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
20 | 8.5 | 5 | 120 | 35 | 72.6 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
20 | 8.5 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
20 | 10 | 5 | 112-114.3 | 40 | 73.1 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
20 | 10 | 5 | 120 | 40 | 72.6 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
20 | 10 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 9 | 5 | 112-114.3 | 35 | 73.1 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 9 | 5 | 115 | 15 | 71.5 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 9 | 5 | 120 | 35 | 72.6 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 9 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 10.5 | 5 | 112-114.3 | 40 | 73.1 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 10.5 | 5 | 115 | 20 | 71.5 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 10.5 | 5 | 120 | 40 | 72.6 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
22 | 10.5 | 5 | 127 | 20 | 71.5 | CP509PS73 | 32x15x60° | EH2+ | 880kg/1,940 lbs |
